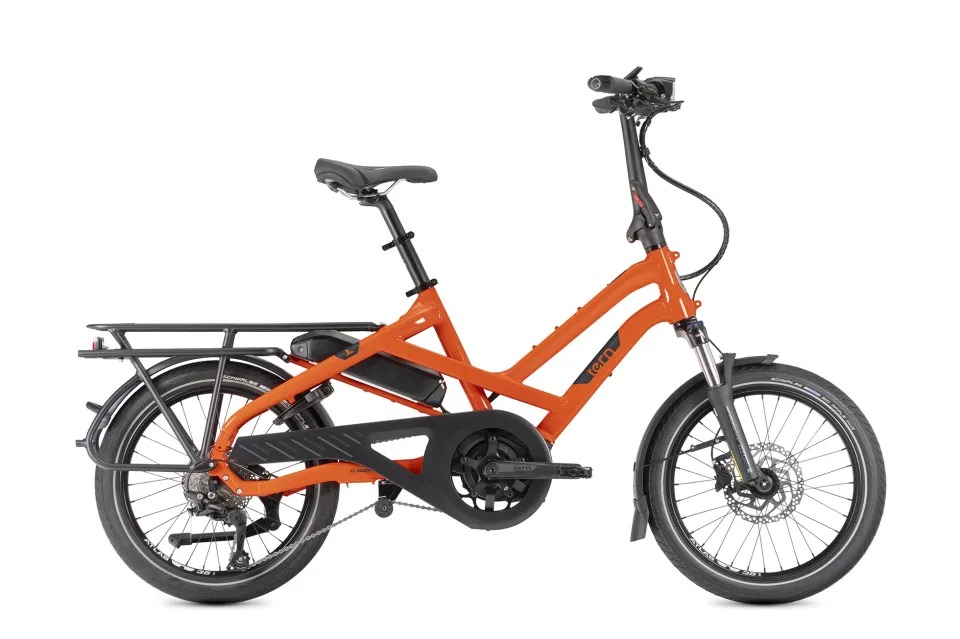

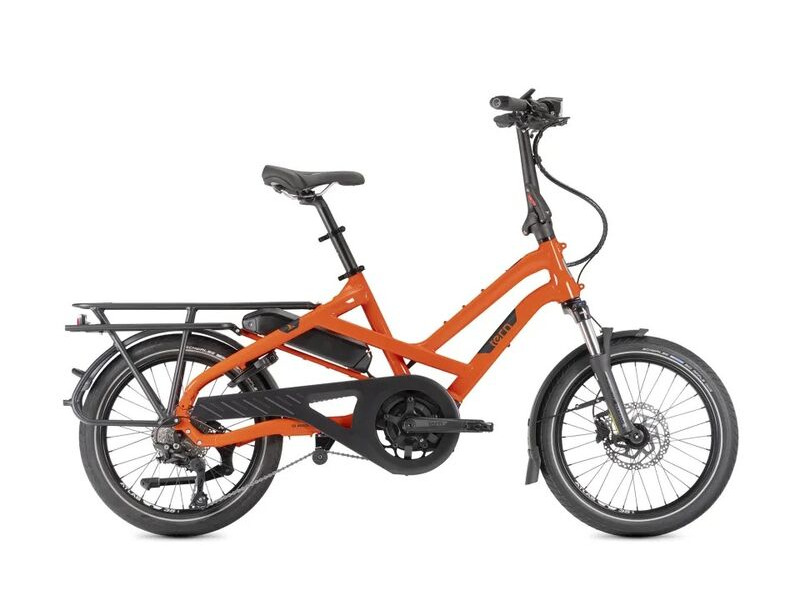

Tern HSD P10
The HSD is the right amount of bike if you want the benefits of a cargo bike but still fancy the convenience and handling of something less bulky. Lean and nimble, the HSD is shorter than a regular bike yet capable of hauling a max gross vehicle weight (MGVW) of 180 kg (397 lb). And thanks to best-in-class components, rigorous lab testing, and UL 2849 certification, you can count on having a safe, reliable bike.
Designed for sharing

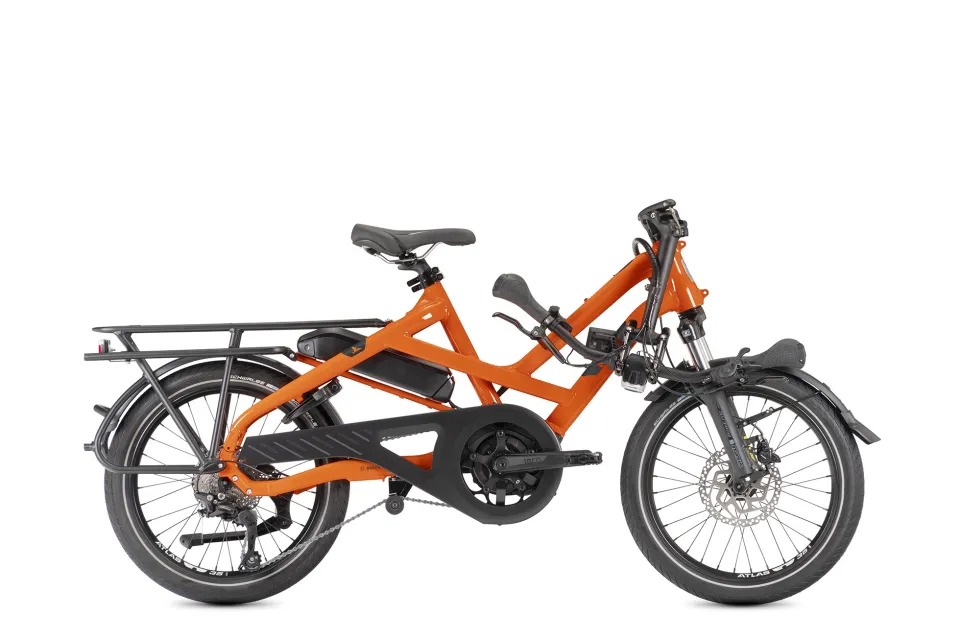

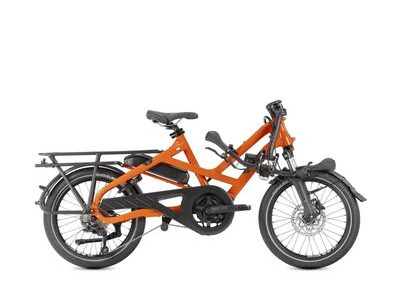

The HSD fits riders 150 - 195 cm tall (4ft -11 - 6ft -5), and the cockpit adjusts in seconds to suit your riding position. It also makes it simple and easy to share the bike with family members. Smaller riders will also appreciate the low Easy-Step frame design for effortless (dis)mounting.
Range: 545 Wh: 51-121 km (32-76 mi)
UK delivery
If your item is in stock and ordered before 12pm, we will do our best to despatch your order the day you place it. In busy times we tell you how long it will take us to process it.
The above does not apply to bikes, which we have to assemble and inspect before repacking for dispatch. Typically we try to have bike orders dispatched within 3-5 days, but in busier times it may take longer. In those cases we'll let you know of longer than expected delivery times.
Please bear in mind that we are closed on Wednesdays, so no items will be dispatched then.
Free postage over £40
For small items we use Royal Mail's 48 service which has a delivery time of typically 2-3 days from dispatch; though you do have the option to upgrade to 24 which is generally next-day from dispatch if you require your order sooner. Please note in some cases the item will need to be signed for, so please provide an address where someone will be in.
Orders over £40 (gbp) qualify for free standard delivery via Royal Mail 48. Please note that helmets are excluded, as they're often ordered in the wrong size/shape/fit. Some larger items aren't suitable for Royal Mail and may need to be sent by courier instead; if so, any additional delivery costs will be clearly shown at checkout.
Bike shipping
When we send out a larger parcel such as a bike or trailer we use a next-day courier - usually either DPD or Parcelforce.
For these reasons please supply us with a delivery address where there will be someone in to sign for your parcel. If there is nobody in when the couriers call, they will leave a card. You can then phone them to arrange delivery for another day or collect your goods from your local depot (a photo ID with proof of address will be required).
How will my bike be delivered?
We fully assemble, safety check and inspect every bike as though you were going to ride it away from our showroom.
However, to get it back into a box suitable for a courier to handle, we have to remove the pedals, handlebar and usually the front wheel - so some minor reassembly is required when the bike is delivered to you.
Please bear in mind that you might need a 15mm spanner for the pedals (adult's bikes generally do not come with pedals included, so you may not need to worry about this), and 4mm, 5mm and 6mm allen/hex keys for the reassembly.
Outside the UK
Since Brexit it is no longer feasible for our website to have permanent shipping prices for international delivery. Instead, if there is an item you are interested in, please Contact Us with a full delivery address and we will quote for delivery.
All the prices on our website and catalogue are in pounds sterling and are inclusive of VAT, but VAT will be removed for international orders. Please bear in mind that you will likely have to pay your country's taxes, import duties and associated courier handling fees for any items.
| Options | Orange In stock now |
|---|---|
| Frame | Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 180 kg |
| Fork | Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 180 kg |
| Rear Derailleur/Hub Gear | Shimano Deore Shadow+ |
| Shifters | Shimano Deore, 1 x 10 spd, trigger |
| Chainset | Tern HSD custom |
| Bottom Bracket | Motor integrated |
| Chain | KMC 10 spd, for eBike, EPT corrosion resistant coating |
| Cassette | Shimano 11-36T, 10 spd |
| Headset | Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated |
| Stem | Tern Andros, adjustable, forged construction, patented technology |
| Handlebars | Tern Sweep, 6061-AL, Tern Andros adapted |
| Front Brake | Tektro, hydraulic disc, 180 mm rotor |
| Rear Brake | Tektro, hydraulic disc, 160 mm rotor |
| Brake Levers | Tektro, hydraulic disc |
| Rims | Tern Atlas H, cargo wheels |
| Front Hub | Novatec, Thru-axle, sealed bearings |
| Rear Hub | Novatec, sealed cartridge bearing, disc |
| Tyres | Schwalbe Big Apple, 55-406, puncture protection, Reflex |
| Saddle | Tern Upright by Velo |
| Seatpost | Tern Telescope, 34.9/30.9 mm, 2014-AL |
| Pedals | Urban with non-slip surface |
| Grips | Ergon |

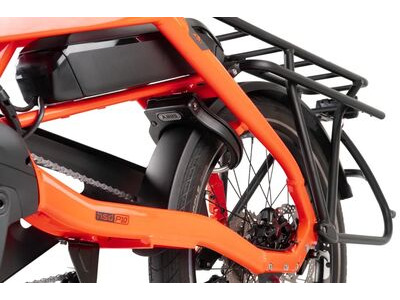

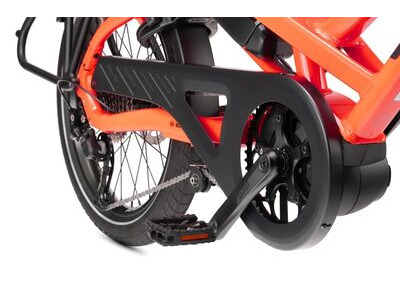

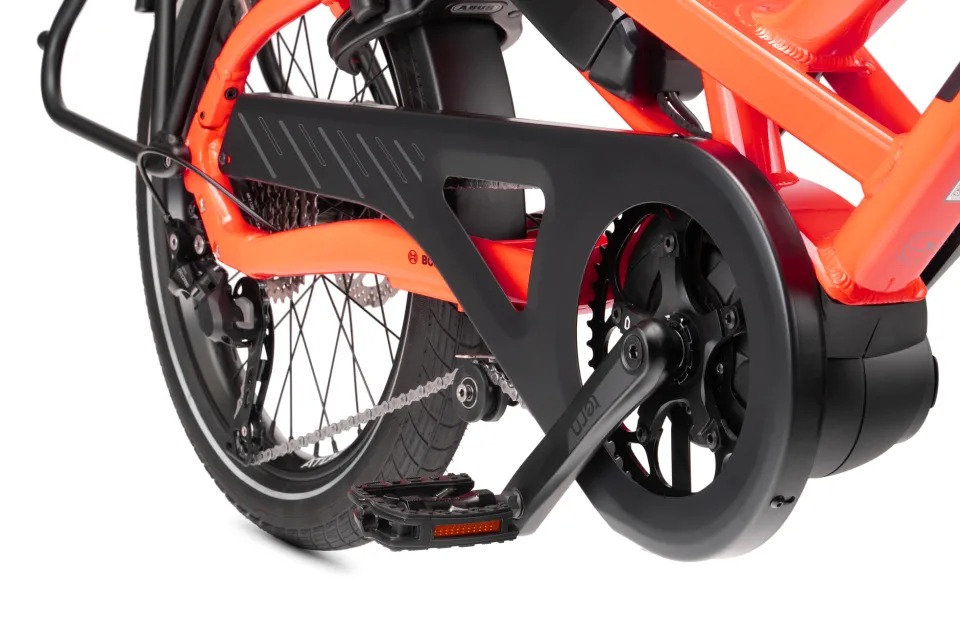

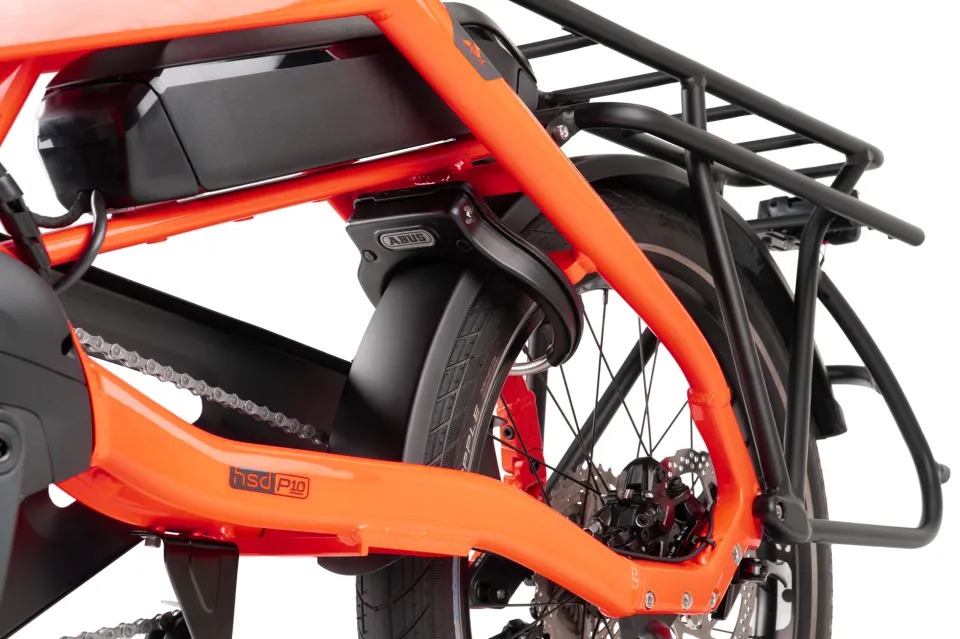

| Accessories/Miscellaneous | Bell - Pitch Plus, brass Chainguard - Tern Custom, full chain cover Kickstand - Ursus, rear mount Front Light: Tern Valo Direct, 190 lumens Rear Light: Herrmans H-Trace, for eBike Rack: Atlas H rack, Atlas Rack Mount, 6 point mounting, 80 kg capacity Frame Lock: ABUS, keyed-alike with Bosch battery |
| Seat Clamp | Tern Collar |

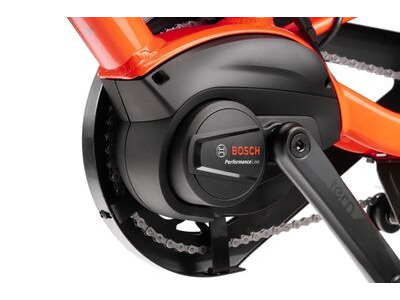

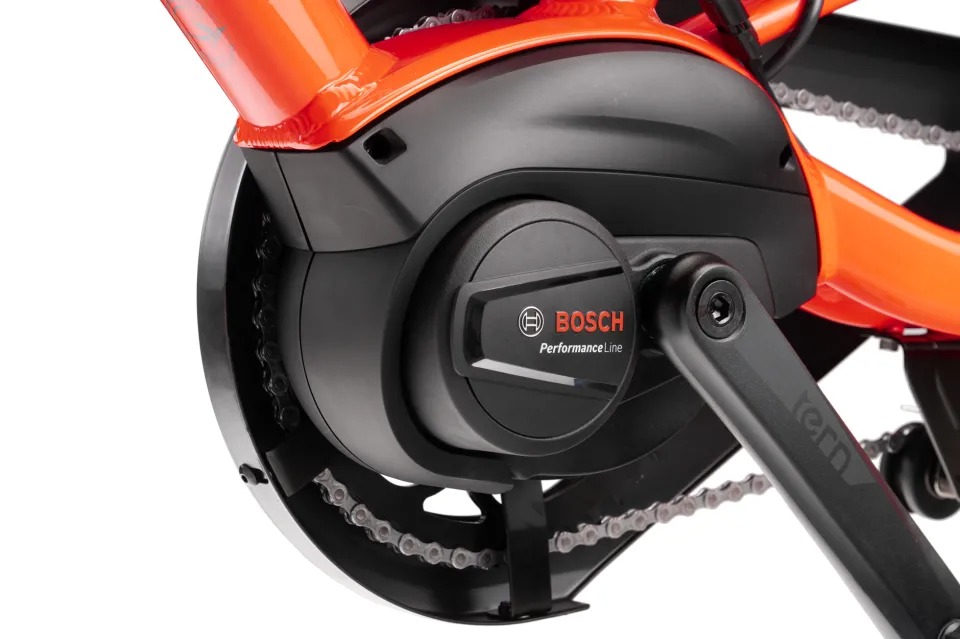

| Motor | Bosch Performance, 340% Assist, 75 Nm Torque, max speed 25 kph (EU). |
| Battery | Bosch PowerPack 545 |

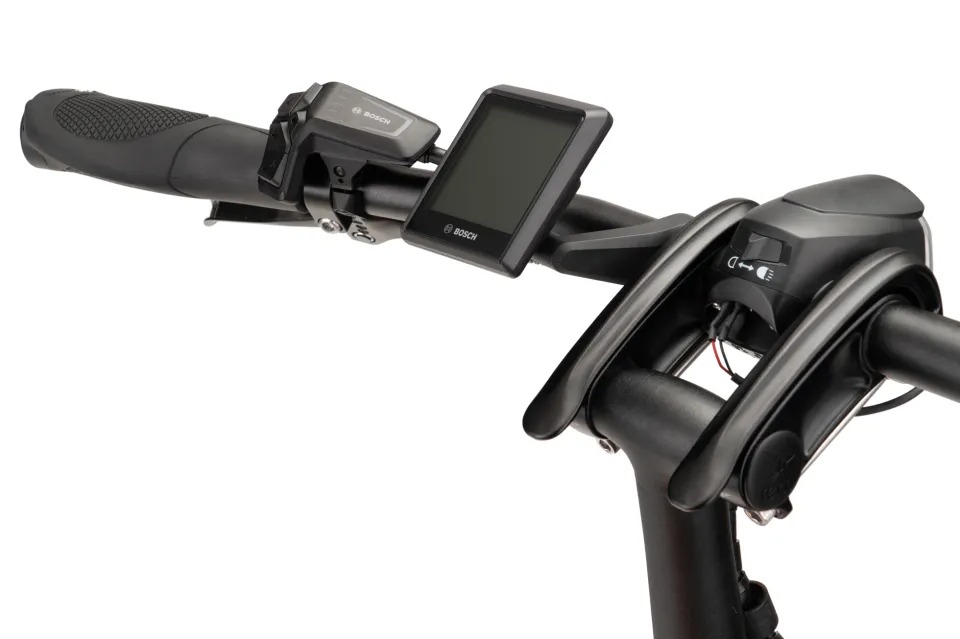

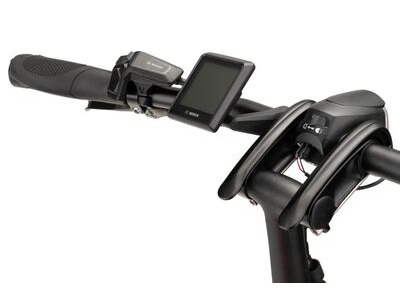

| Display | Bosch Intuvia 100 w/ LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock |
| Weight | 27.6kg |
